Steel Industrial Workshop: Crane-Ready Frame Design

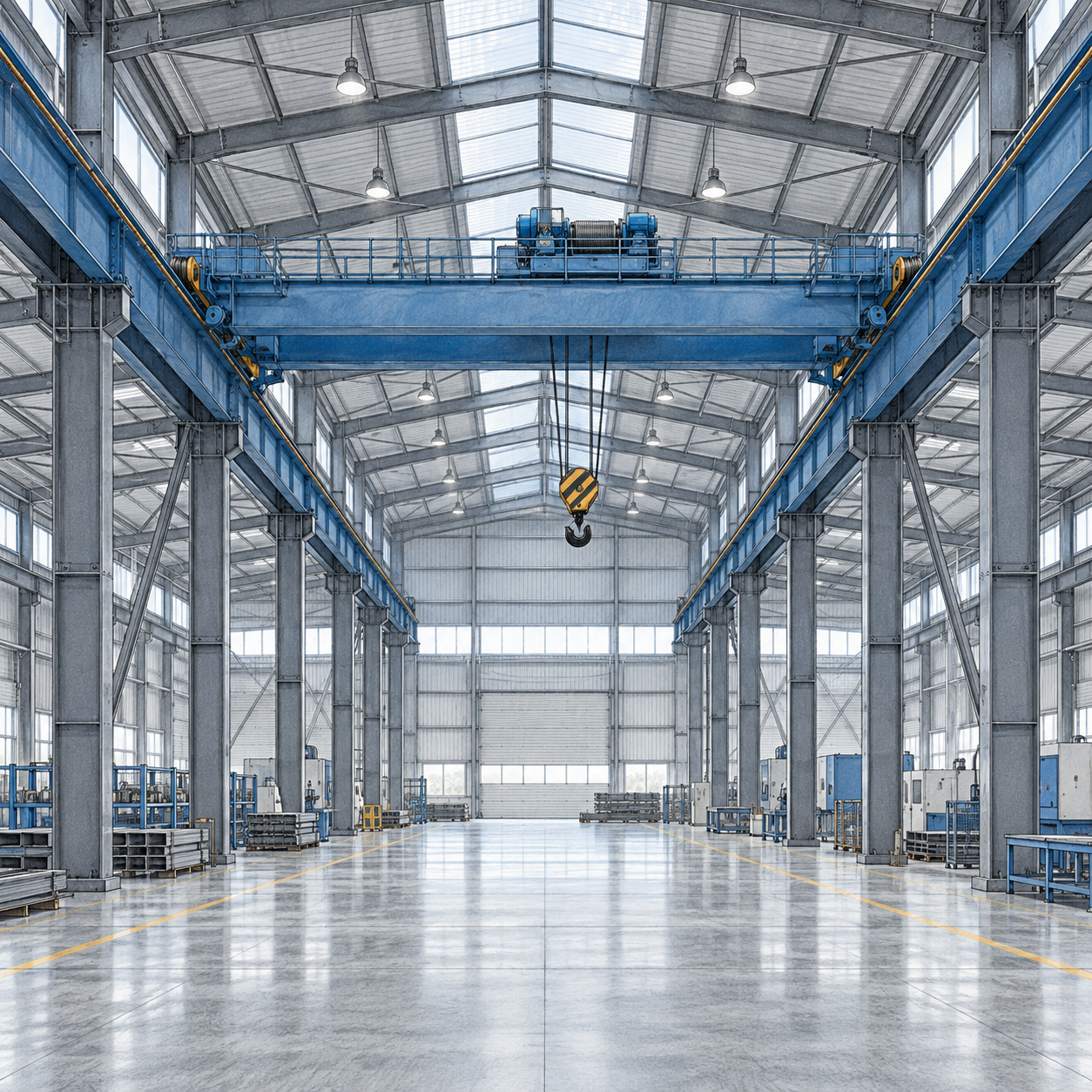

When a steel industrial workshop needs a crane-ready frame

When production plans include overhead lifting, a standard portal frame is not enough. A Steel Industrial Workshop becomes crane-ready only when the building frame, crane runway, foundations, bracing, clear height, and operating loads are designed as one system from the start. The practical decision is simple: define the crane duty and operating envelope before approving the structural concept, not after the main steel has been fabricated.

This issue often surfaces when equipment procurement moves faster than building design. A project team may initially specify a workshop for fabrication, storage, or assembly, then add a bridge crane after the column layout, roof elevation, and foundations have already been set. The result can be reduced hook clearance, costly strengthening at the crane brackets, interference with doors and services, or an operating restriction that was never intended. Early coordination protects the construction schedule and gives the facility room to work as planned.

Start with the lifting operation, not the building span

The first question is not “How large should the workshop be?” It is “What must the crane safely pick, move, and place?” Crane capacity alone does not answer that question. The structural designer needs the full operating description because a 10-tonne crane used occasionally for straightforward lifting places different demands on a building than the same-rated crane used continuously in a production line. Before developing the frame, establish the following information:

These inputs determine the vertical reactions, horizontal surge forces, lateral loads, impact effects, and fatigue considerations that the structure must resist. They also affect the practical internal geometry. A building may have adequate eave height on paper but still fail to provide usable lifting height once crane girder depth, trolley dimensions, hook approach, and safety clearance are included.

Clear height is more than eave height

One of the most expensive late-stage discoveries is that the crane can travel but cannot lift a component high enough to clear a machine, truck bed, assembly fixture, or stacked material. The clear lifting path should be reviewed as a vertical chain rather than a single building dimension.

Begin at the finished floor level and identify the highest point the load must pass over. Add the required operational clearance, the height of the load, the lifting attachment, the hook block, and the minimum hook approach dimension supplied by the crane manufacturer. Then compare that total with the actual hook height, not merely the underside of the roof structure.

Roof bracing, suspended utilities, lighting, fire protection lines, ventilation ducts, and cable trays can all reduce usable clearance. A crane-ready frame should reserve a coordinated service zone. Placing services without reference to crane travel can create maintenance difficulties even when the initial lifting clearance appears acceptable.

Door openings deserve the same review. A load lifted inside the workshop may need to move toward a loading bay, a transfer platform, or a large equipment door. The crane’s end approach and the position of the end-stop can limit how close the hook reaches to the wall. Where full access near an end wall matters, the structural and door arrangement must be developed together rather than treating the opening as an architectural detail.

The crane runway changes the behavior of the frame

In a conventional steel workshop without overhead lifting, the primary frame mainly carries roof, wall, wind, snow where applicable, and other building loads. Once a bridge crane is introduced, the columns support runway beams and receive concentrated, moving wheel reactions. Those reactions are not static. They move along the building length, generate longitudinal and transverse horizontal actions, and can introduce repetitive stress cycles.

The runway beam must be selected for bending, shear, deflection, local wheel effects, lateral stability, and connection performance. Its supporting brackets or corbels transfer forces into the columns. The columns themselves must be checked for combined axial load, bending in both directions, local stresses at the bracket connection, and deformation limits associated with crane operation.

Frame stiffness matters as much as nominal strength. Excessive lateral movement can affect crane tracking and increase wear at wheels, rails, and electrical conductors. A structure that technically remains within a basic strength limit may still be unsuitable if its deflection creates poor crane operating conditions. The relevant limits should be coordinated with the crane supplier and the governing project standard before member sizes are finalized.

Forces that are often underestimated

Several actions are easy to overlook when a preliminary layout is based only on lifting capacity:

These forces affect not only the steel above ground. They must travel through the columns into base plates, anchor rods, pedestals, and foundations. Treating the foundation design as a separate later package creates a real risk of undersized pedestals or reinforcement congestion around heavily loaded column bases.

Choose the structural arrangement around the operating layout

Most crane-equipped workshops use a portal-frame arrangement with crane runway beams supported along each side of the building. This can be efficient for repetitive bays and clear production space, but the best arrangement depends on lifting routes and internal obstructions. The column grid should support workflow as well as roof framing.

A narrow bay spacing may reduce runway beam spans and help control deflection, yet it adds columns, foundations, and potential interference with doors or circulation. Wider bays reduce the number of foundations but can increase member depth and connection demand. There is no universal “best” grid; the practical choice depends on crane wheel loads, building length, equipment positions, wall openings, and erection sequence.

Column placement should be checked against forklift routes, truck access, workstations, racking, and emergency circulation. A crane is valuable because it moves heavy items through the building. That advantage weakens when a column line blocks the route from receiving to production or from production to dispatch.

For projects with several operational zones, it can be more effective to divide the building into distinct crane bays or use separate lifting systems. A high-capacity maintenance area may require a heavier runway and stronger columns than a general assembly zone. Designing every bay to the maximum requirement can increase steel weight unnecessarily, while sharing one crane between incompatible work zones can create operational bottlenecks.

Do not leave bracing decisions until detailing

Crane forces need a clear load path. Roof bracing, vertical wall bracing, frame action, runway ties, and foundations must work together. The location of braced bays should be settled early because they can conflict with large doors, ventilation louvres, internal circulation, or future expansion points.

A common planning problem arises when every sidewall bay is expected to remain open for doors or material handling. Without an alternative lateral system, the design team may be forced to introduce heavier moment-resisting frames or relocate openings after architectural coordination has progressed. Neither outcome is automatically wrong, but both should be deliberate engineering decisions rather than corrections made during shop drawing review.

Bracing also affects erection. Temporary stability during installation needs consideration, particularly where crane runway beams are installed before roof and wall systems are complete. The erection plan should define the sequence for columns, primary rafters, bracing, runway beams, rails, and crane installation. A stable final design does not automatically guarantee a safe intermediate condition.

Rail alignment and tolerances are operating issues

Even a well-designed frame can cause trouble when runway rails are poorly aligned. Rail gauge, elevation, straightness, and relative level affect wheel contact, crane travel, and wear. The building contractor, steel erector, runway installer, and crane supplier should agree on responsibility for interface dimensions before materials arrive on site.

Runway beam top flanges, rail clips, splice locations, expansion provisions, and conductor supports must be coordinated as a package. Field adjustment may be necessary, but it should be planned within defined tolerances rather than relied upon as a cure for mislocated brackets or inconsistent column geometry.

During handover, verify that the runway is inspected before regular service. The review should cover structural connections, rail fastening, end stops, buffers, electrical supply arrangements, clearances, and the crane supplier’s commissioning requirements. Any restriction on loading, travel, or operating mode should be documented clearly for the facility team.

Plan for expansion without overbuilding the first phase

Future expansion is often mentioned casually: “The workshop may need a larger crane later.” That statement should be converted into a defined design decision. There are several levels of readiness, and they do not carry the same cost.

The useful approach is to identify what is genuinely likely. Designing a roof for a possible extension may be sensible. Designing every foundation for an undefined future crane several times larger than the current equipment may not be. A project manager should ask for the cost difference between the current requirement and each clearly defined upgrade option, then decide where early investment prevents disruptive strengthening later.

Information to issue before steel fabrication

Fabrication should not begin with only a building plan and a crane capacity note. The structural package needs coordinated data from the crane supplier, process planner, civil designer, and building services team. At minimum, the issued information should include the crane general arrangement drawing, wheel loads and load combinations, rail type, hook height, runway elevation, required tolerances, equipment layout, opening schedule, design loads, corrosion protection requirements, and the intended erection sequence.

Material selection and protective coating should match the environment and project specification. Common structural steel grades may include Q355B or Q235B, S355JR or S275JR, and ASTM A572 Grade 50, subject to the applicable design standard and verified material documentation. Coating selection should account for humidity, chemical exposure, coastal conditions, maintenance access, and whether galvanizing, a blast-cleaned paint system, or a duplex coating is appropriate. The crane runway and its connections should not be treated as less critical simply because they sit inside the building envelope.

Where a site also includes accommodation or a commercial component, keep its structural logic separate from the crane hall. A low- to mid-rise guest building, for example, may use repeated room modules, composite deck and concrete slabs, and a braced frame or core-and-frame lateral system rather than industrial runway columns. The Multi-Storey Hotel and Hospitality Building approach is relevant to that adjacent use because its 3–12-storey arrangement, regular grids, and service-friendly composite floors address a different set of loads and planning constraints. Combining the two functions on one site requires interface coordination, but it should not lead to crane loads being assumed within a hospitality frame without a separate structural assessment.

Warning signs that the concept needs revision

A review is warranted when crane capacity is still marked “to be confirmed,” when hook height has been estimated from eave height, or when the crane vendor has not issued wheel loads. Other warning signs include runway brackets added after column sections are selected, large sidewall openings occupying all potential braced bays, foundations designed before crane reactions are available, and an expansion plan described without a target crane capacity or runway length.
