High-Bay Automated Warehouse (AS/RS)

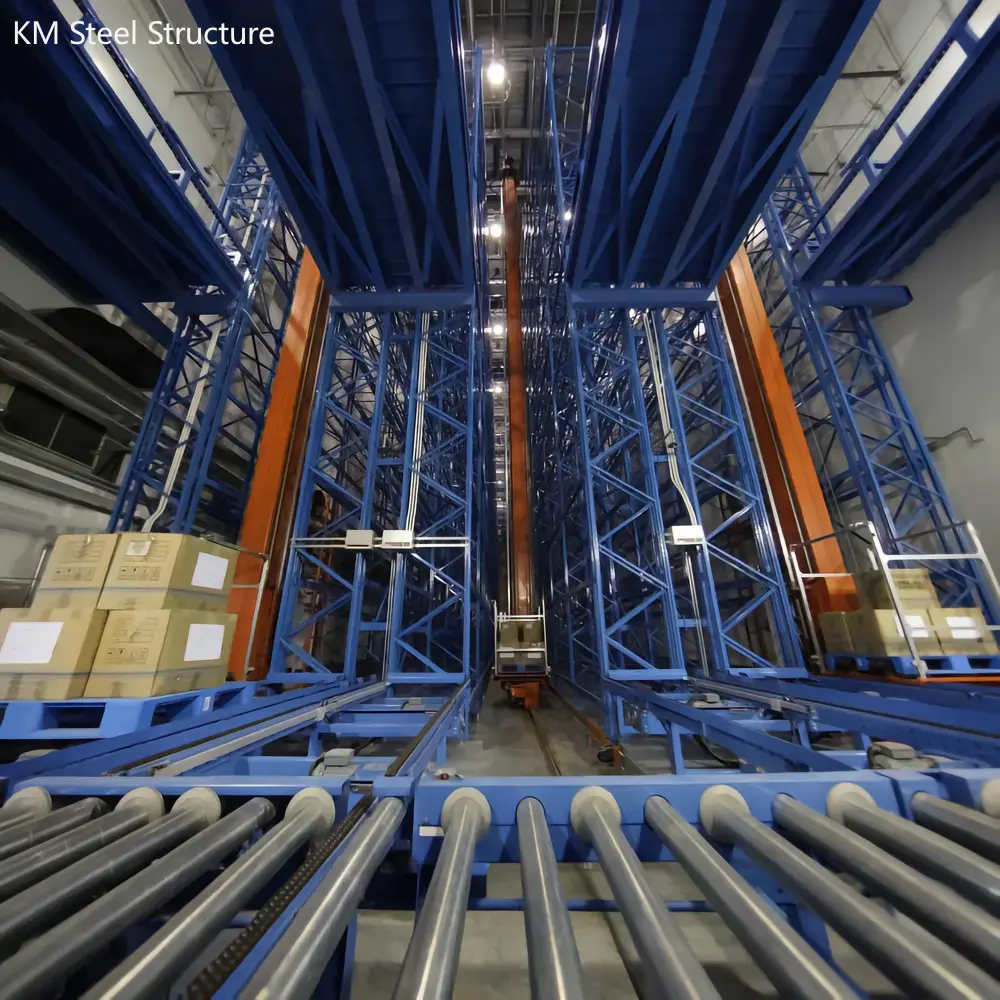

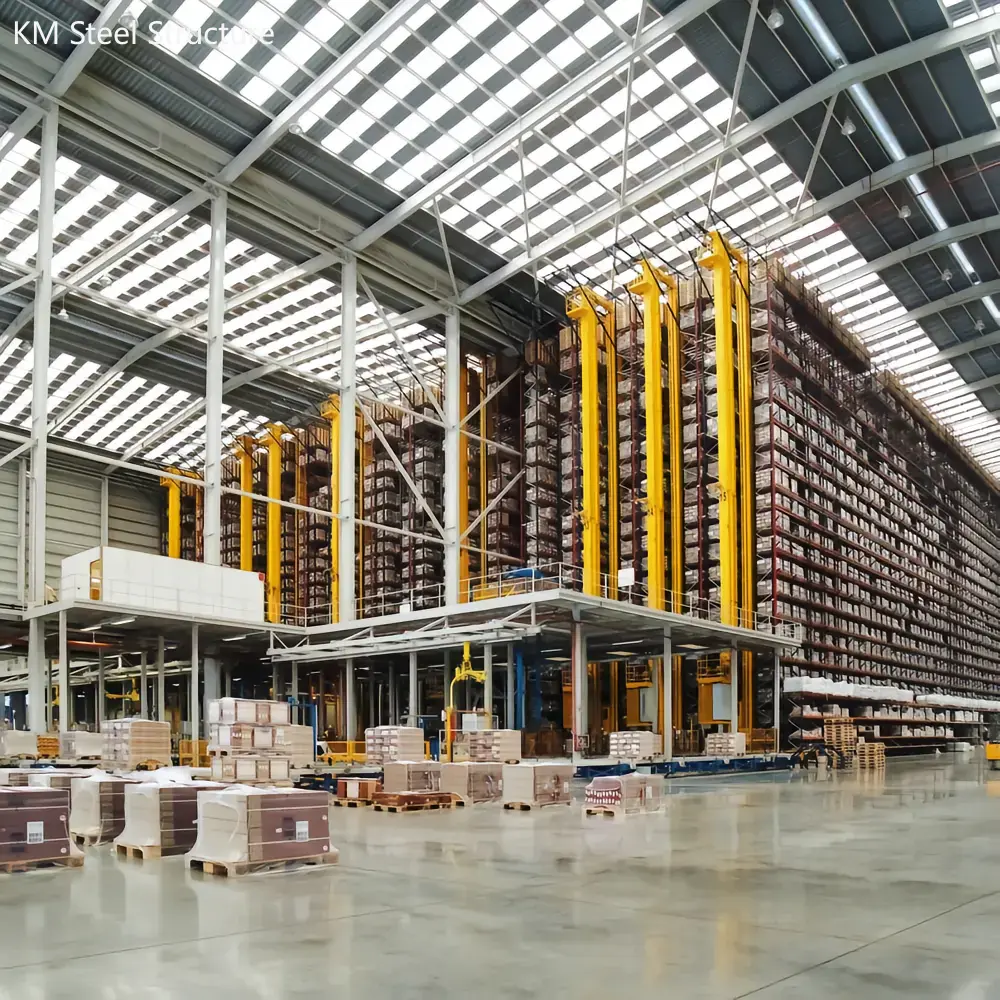

Once racking passes roughly 15 m, the building stops being a shell around a storage system and becomes part of the machine. Stacker cranes run on rails fixed to the structure, so column alignment, floor flatness and settlement tolerances move from "good practice" to "the system does not run without them". This is the most tolerance-sensitive building type in the warehouse family.

+8615662655103
info@kmsteelstructure.com
Contact us →

Products

Product Description

STEEL STRUCTURE WAREHOUSE
High-Bay Automated Warehouse (AS/RS)
Structure that becomes part of the machine
Aerial view of Keming Steel Structure 120,000 m2 fabrication facility

Once racking passes roughly 15 m, the building stops being a shell around a storage system and becomes part of the machine. Stacker cranes run on rails fixed to the structure, so column alignment, floor flatness and settlement tolerances move from "good practice" to "the system does not run without them". This is the most tolerance-sensitive building type in the warehouse family.

FACILITY
120,000
m² smart park
ANNUAL OUTPUT
100,000
tons per year
PRODUCTION
7
steel lines
EXPORT
20+
countries
WHERE IT FITS
Automated storage and retrieval (AS/RS) installationsHigh-density pallet storage where land cost is high
Operations running narrow-aisle or AGV-based handlingBuffer storage feeding automated production
TYPICAL SPECIFICATION
PARAMETERVALUE
Building height18–45 m, set by racking height
Typical stacking height25–32 m (up to 40 m in low-seismic zones)
Building width30–60 m; typically 36–45 m
Bay spacing12–15 m for racking and AGV clearance
Floor flatnessFF50 / FL35 minimum; ≤2 mm per 2 m² for AGV paths
Column verticality≤0.5° (H/1000, max 5 mm per 30 m)
Rail alignment±1 mm over 30 m height
Differential settlement< 1/1500
Roof deflectionL/400 or stricter
Column driftH/400 or stricter
First-mode frequency> 1.5 Hz, clear of shuttle cycle resonance
Base column load60–80 kN/m&sup2; when racking is fully loaded
Anchor bolt tolerance&plusmn;2 mm with pre-set templates
FireESFR plus intumescent coating, 120-minute rating
Main steelQ355B / Q235B (GB), S355JR / S275JR (EN), or ASTM A572 Gr.50
HOW IT GOES TOGETHER
The racking is designed as a structure independent from the building frame. That separation matters: if the rack and the building share load paths, rack deflection and building sway interact, and stacker cranes lose rail alignment. Columns are fabricated with pre-camber and set on adjustable base plates, grouted and allowed to cure before erection continues, which removes settlement during assembly. Every column is monitored for verticality during erection rather than checked afterwards. Before roof cladding goes on, the frame is laser-scanned and rail brackets are shimmed from the scan data. Racking anchorage, conveyor supports and sensor conduits are detailed into the shop model from the start, because retrofitting them into a finished frame is expensive and slow.
SURFACE TREATMENT
Hot-dip galvanizing
For humid or corrosive sites
Paint system
Blast to Sa2.5, epoxy zinc-rich primer
Duplex system
Galvanizing plus paint topcoat
Marine-grade coating
For long sea freight
WHAT WE HANDLE
Structural design in PKPM, 3D3S, Midas, SAP2000Shop detailing and BIM models in Tekla
CNC cutting, automatic submerged-arc weldingExport packing, container loading, documentation
3D assembly guides, localized erection manualsOn-site supervision where the project needs it
HOW QUALITY IS CONTROLLED
Steel comes from certified mills with full material traceability. Welds are checked by ultrasonic testing and regular weld audits under ISO 9001 control. Third-party inspection can be arranged before shipment, and load performance is verified at each production stage.
Built to your project, not to a catalogue. These are the ranges we build most often, not limits. If your project needs something outside them, send us the details — we will engineer it to spec and run the verification before production starts.
