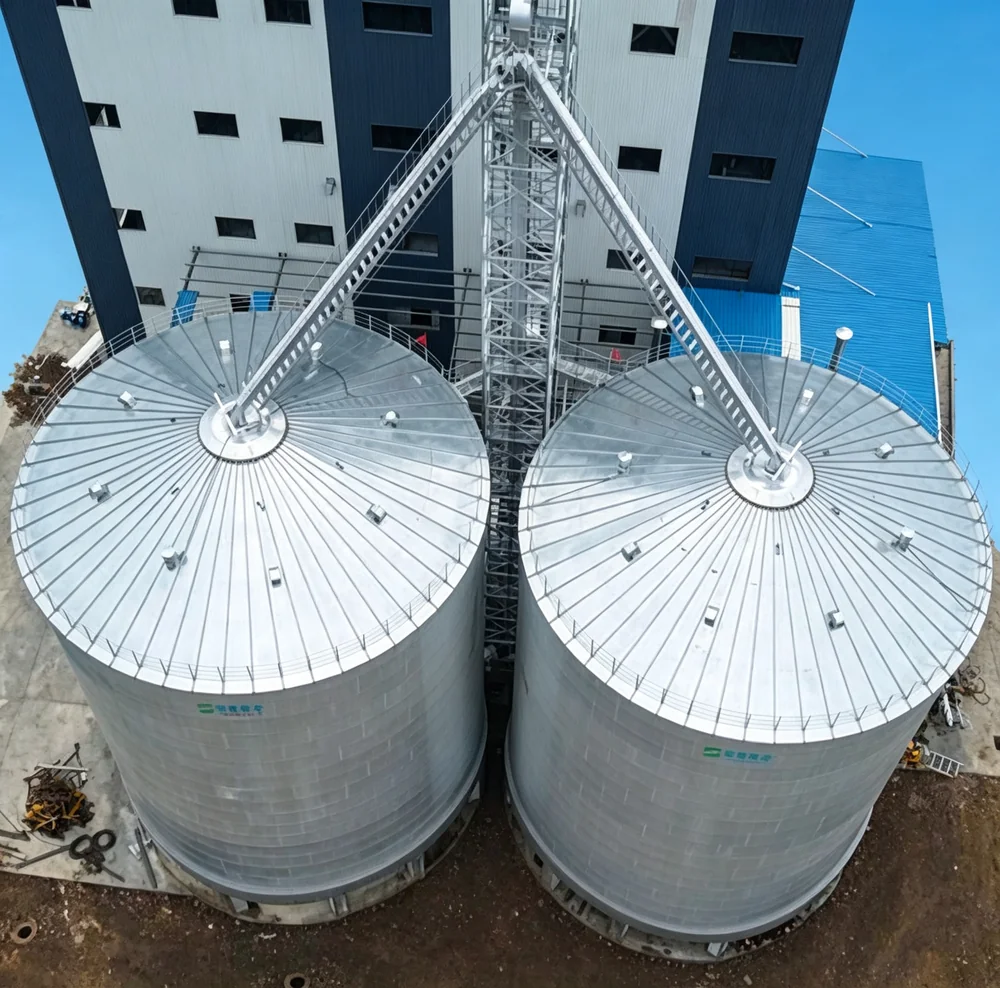

Galvanized Steel Grain Silo

›

‹

  • Galvanized Steel Grain Silo
  • Galvanized Steel Grain Silo
  • Galvanized Steel Grain Silo

›

Galvanized Steel Grain Silo

A grain silo is the most steel-intensive single structure in the agricultural chain. One silo ranges from 2,000 to 100,000 tonnes, and the shell carries constant lateral pressure from the stored grain plus wind load and daily temperature cycling. Wall thickness, corrugation and support detailing have to follow the fill height and the material being stored — not a catalogue size that happens to be available.
+8615662655103
info@kmsteelstructure.com
Contact us →

Products

Product Description

AGRICULTURAL STEEL BUILDINGS
Galvanized Steel Grain Silo
Bulk storage that holds its capacity and its shape

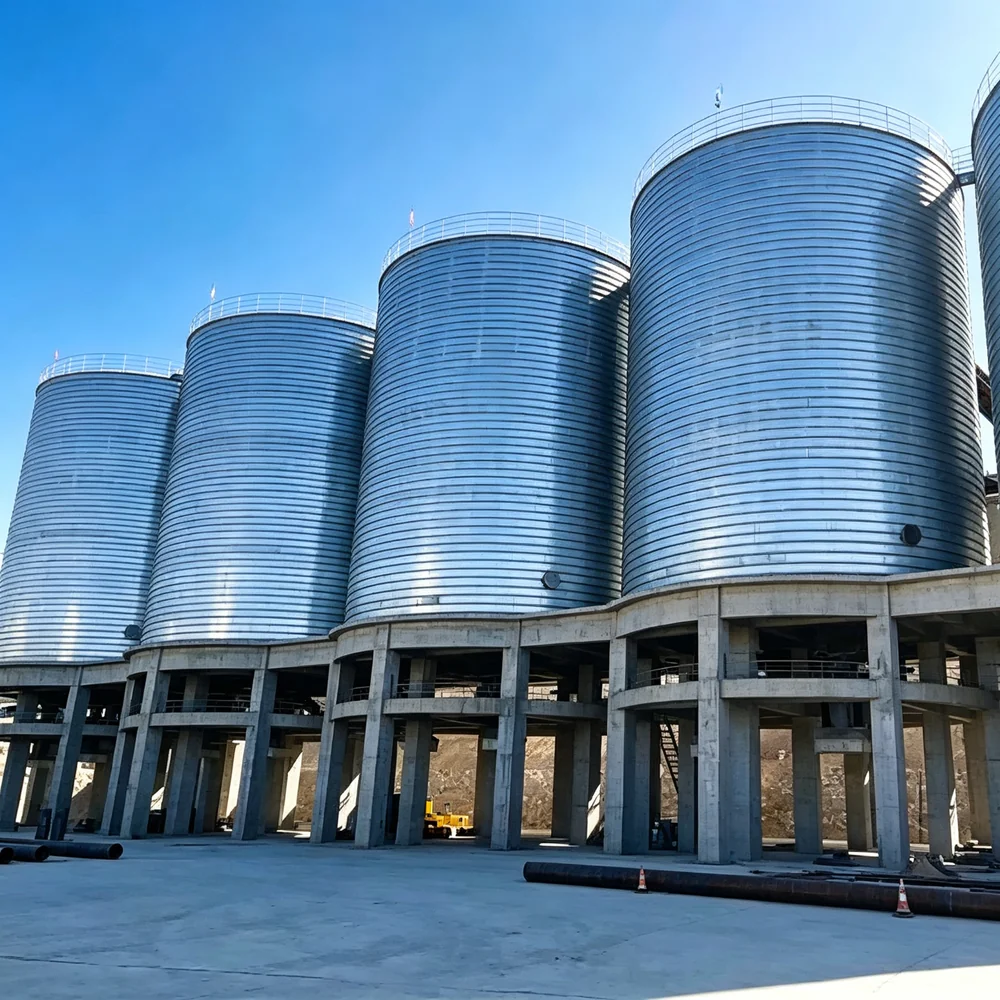

Steel grain silo project by Keming Steel Structure

A grain silo is the most steel-intensive single structure in the agricultural chain. One silo ranges from 2,000 to 100,000 tonnes, and the shell carries constant lateral pressure from the stored grain plus wind load and daily temperature cycling. Wall thickness, corrugation and support detailing have to follow the fill height and the material being stored — not a catalogue size that happens to be available.

FACILITY
120,000
m² smart park
ANNUAL OUTPUT
100,000
tons per year
PRODUCTION
7
steel lines
EXPORT
20+
countries
WHERE IT FITS
Farm and commercial grain storage, 2,000 to 100,000 t per siloFlat-bottom silos for high-capacity stores, hopper-bottom for smaller lots
Bolted silos where relocation may be needed, welded silos for grain terminalsSilo groups with conveying towers, aeration and temperature monitoring
TYPICAL SPECIFICATION
PARAMETERVALUE
Silo typeBolted / spiral / welded
Capacity per silo2,000 – 100,000 t
Diameter3 – 18 m (bolted), 20 – 60 m (welded)
Height25 – 35 m typical
Wall plate0.8 – 4.2 mm corrugated (bolted), 6 – 12 mm (welded)
Corrugation depth45 mm
Zinc coating275 g/m² or heavier
Bottom and roofConical or flat bottom, cone roof
Main steelGalvanized sheet, Q235B / Q355B, S275JR / S355JR
HOW IT GOES TOGETHER
The shell carries the vertical weight of the grain and a horizontal pressure that grows with depth, so plate thickness and corrugation are set by fill height and bulk density rather than by a standard panel size. Bolted silos use galvanized corrugated plates and high-strength bolts so the shell can be assembled on site and taken down again later; welded silos use thicker plate and full-penetration welds for large terminal capacity. Aeration ducts, temperature cables, level indication and discharge are coordinated with the shell, so every opening and support is designed in rather than cut on site.
SURFACE TREATMENT
Hot-dip galvanizing
Zinc to 275 g/m² and heavier, for humid and ammonia-rich sites
Paint system
Blast to Sa2.5, epoxy zinc-rich primer plus topcoat
Duplex system
Galvanizing plus paint topcoat for severe exposure
Marine-grade coating
For long sea freight and coastal sites
WHAT WE HANDLE
Structural design in PKPM, 3D3S, Midas, SAP2000Shop detailing and BIM models in Tekla
CNC cutting, automatic submerged-arc weldingHot-dip galvanizing and industrial coating lines
Export packing, container loading, documentation3D assembly guides, localized erection manuals
HOW QUALITY IS CONTROLLED
Steel comes from certified mills with full material traceability. Welds are checked by ultrasonic testing and regular weld audits under ISO 9001 control. Coating thickness is verified on galvanized and painted members before packing, and third-party inspection can be arranged before shipment.
Built to your project, not to a catalogue. These are the ranges we build most often, not limits. If your facility needs something outside them, send us the drawings or the process flow — we will engineer it to spec and run the verification before production starts.
