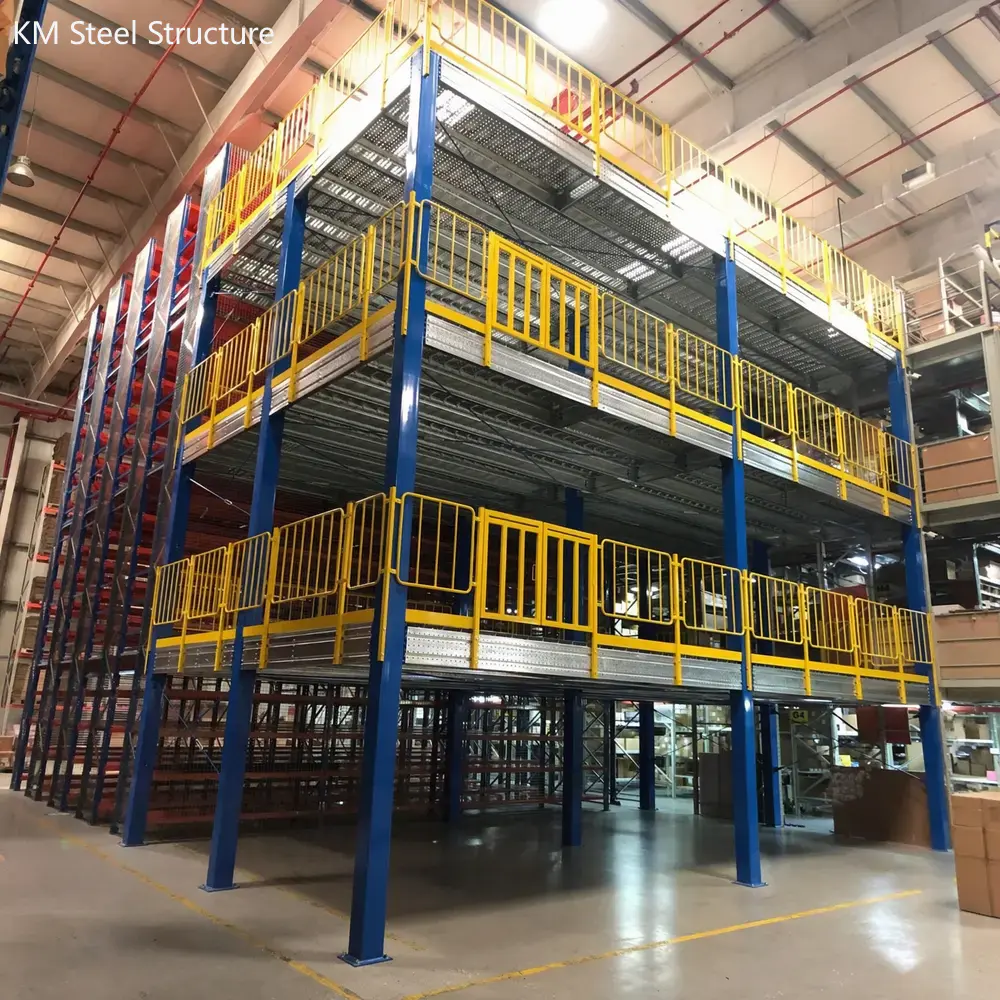

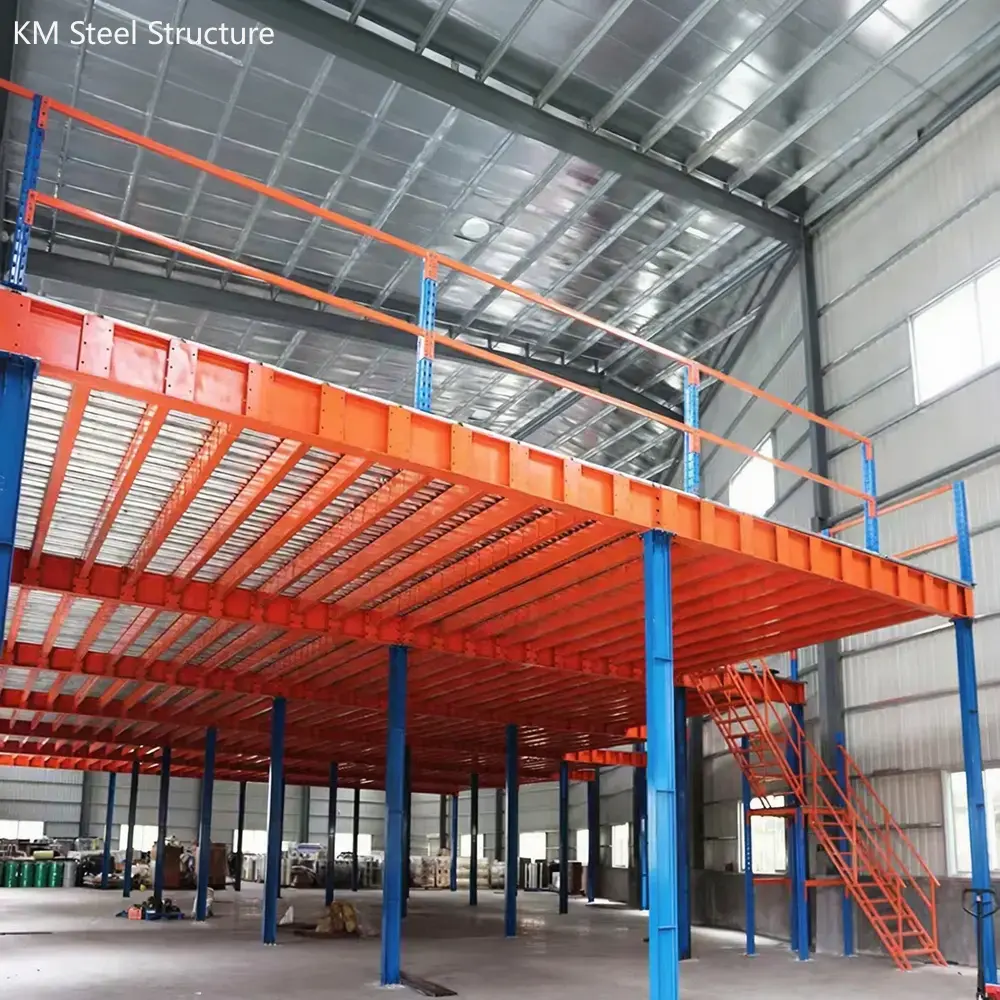

Steel Warehouse Mezzanine System

A mezzanine adds floor area without adding land or extending the footprint. It works because warehouse clear height is usually under-used: the space above the pick face or the packing area is empty air. Framing that level in steel turns it into storage, workspace or an office block, and it can be removed or extended later if the operation changes.
+8615662655103
info@kmsteelstructure.com
Contact us →

Products

Product Description

Steel Warehouse Mezzanine System
Floor area without extra land
Aerial view of Keming Steel Structure 120,000 m2 fabrication facility

A mezzanine adds floor area without adding land or extending the footprint. It works because warehouse clear height is usually under-used: the space above the pick face or the packing area is empty air. Framing that level in steel turns it into storage, workspace or an office block, and it can be removed or extended later if the operation changes.

FACILITY
120,000
m² smart park
ANNUAL OUTPUT
100,000
tons per year
PRODUCTION
7
steel lines
EXPORT
20+
countries
WHERE IT FITS
Storage above packing or dispatch zonesOffice and welfare accommodation inside the warehouse
Order picking platforms and pick modulesValue-added service and light assembly areas
TYPICAL SPECIFICATION
PARAMETERVALUE
Supported span6–12 m, matching primary column grid
Clear height belowSet by the operation underneath
Imposed loadTo use: 5 kN/m² storage, 2.5–3 kN/m² office
Deck optionsConcrete-filled metal deck, grating, or plated
AccessStair, pallet gate, goods lift by layout
FireCompartmentation and escape to local code
Main steelQ355B / Q235B (GB), S355JR / S275JR (EN), or ASTM A572 Gr.50
Design codeGB 50017 or EN 1993, to project specification
HOW IT IS BUILT
The mezzanine is designed into the primary frame, not hung off it afterwards. Columns land on the existing grid where possible, and where they do not, the primary frame is checked for the new point loads before anything is fabricated. Beam depth is often the binding constraint: every millimetre of structure eats usable headroom below, so shallow composite or cellular sections are used where spans allow. Decking is chosen by use — grating keeps sprinkler coverage effective through the floor, while solid deck creates a separate compartment that needs its own protection. Stair and pallet gate positions are fixed early, because they are the parts that disrupt racking layouts most.
SURFACE TREATMENT
Hot-dip galvanizing
For humid or corrosive sites
Paint system
Blast to Sa2.5, epoxy zinc-rich primer
Duplex system
Galvanizing plus paint topcoat
Marine-grade coating
For long sea freight
WHAT WE HANDLE
Structural design in PKPM, 3D3S, Midas, SAP2000Shop detailing and BIM models in Tekla
CNC cutting, automatic submerged-arc weldingExport packing, container loading, documentation
3D assembly guides, localized erection manualsOn-site supervision where the project needs it
HOW QUALITY IS CONTROLLED
Steel comes from certified mills with full material traceability. Welds are checked by ultrasonic testing and regular weld audits under ISO 9001 control. Third-party inspection can be arranged before shipment, and load performance is verified at each production stage.
Built to your project, not to a catalogue. These are the ranges we build most often, not limits. If your project needs something outside them, send us the details — we will engineer it to spec and run the verification before production starts.
